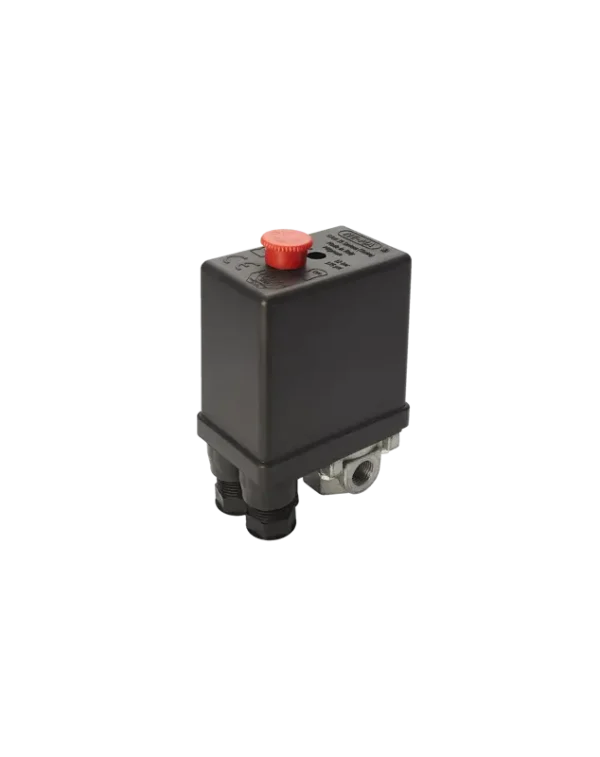

TRENT COMPRESSOR SINGLE PHASE NEMA PRESSURE SWITCH (NO OVER LOAD)
NEMA
Product successfully added to the Quote List
Pressure Switch – Supplied by Trent Air Compressors
Engineered for precise control and system protection, this pressure switch offers:
20A max current capacity
380V max voltage rating
Unloader port included for compressor head unloading
Fixed differential setting for stable operation
Easy-to-use on-off switch
Standard ¼” BSP inlet
Rated to IP42 for resistance against dust and moisture
Trent Air Compressors supplies rugged, industrial-grade pressure switches that are both efficient and long-lasting—making them the perfect replacement solution for businesses focused on compressor system reliability and cost control.
| Dimensions | 7,5 × 4,5 × 4,4 cm |
|---|---|
| SKU | JFC-8600 |
| Model | NEMA 8600 SINGLE PHASE PRESSURE SWITCH |
| Weight (KG) | 0.3 |
| kW | 2.2 |
| L/min | N/A |
| m3/h | N/A |
| c.f.m | N/A |
| Bar | 11 |
| Psi | 160 |
| N.Stages | N/A |
| Country of origine | Italy |
| V/Ph/Hz | N/A |
| Receiver | N/A |
| dB(A) | N/A |
| BSP | 1/4" |
| Air End/PUMP | N/A |
| Highlights | N/A |
| Drive Type | N/A |
| Product Type | N/A |
| Alternative Item | N/A |
| Amps | 20A |
